Online Oil Particle Counter Sensor. LIQ-4 Particle Plus Online oil monitoring sensor for particle count adopts a light blockage method which is specified by ISO4402 / ISO11171 to test the oil pollution degree, which has the advantages of fast detection speed, strong anti-interference, high precision and good repeatability. Particle size: 1~100um or 4~70 um(c), with Eight channels from 1um to 70um(c).

Online Oil Sensor For Wind Turbine Gearbox. LIQ-WTG Real-time detection of the number of wear particles(Fe particles and Non-Fe particles),viscosity, density, water activity, moisture content and temperature of wind turbine gearbox oils. Wear debris size range: Ferromagnetic wear particles of >40um, and Non-Ferromagnetic wear particles of >150um.

Online Oil Sensor For Wear Condition Monitoring. LIQ-WCM Detection of ferromagnetic and non-ferromagnetic wear particles, viscosity, density, micro-water content, water activity, temperature, dielectric constant (contamination), etc.,The device is compact and sturdy, and is very suitable for oil status monitoring of vehicle-mounted equipment and other heavy industrial equipment. Detection capability: ferromagnetic abrasive particles Fe> 40μm ( ESD ) Five levels; non-ferromagnetic abrasive NFe> 150μm ( ESD ) five levels.

Wear debris sensor. LIQ - WDS8 Oil wear debris sensor utilizes an advanced three-coil electromagnetic induction principle. It is equipped with a high-precision signal sampling and processing unit, along with sophisticated algorithms. This combination enables real-time detection of both ferromagnetic and non-ferromagnetic abrasive particles in the oil circuit.

Oil condition sensor solution with PLC. LIQ - PLC The control system integrates 4G communication module, display screen and data processing module. It can be adapted to the detection of viscosity, density, dielectric constant, water content, temperature and wear particles. Sensors can be freely replaced according to the site monitoring requirements, suitable for batch deployment in industrial sites.

Oil Condition Sensor. LIQ 81 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils, For the detection of Kinematic Viscosity, Density, Dielectric constant, Moisture content(dissolved water), Dynamic viscosity, Water Activity(Humidity/Saturation), Temperature, and Water content.

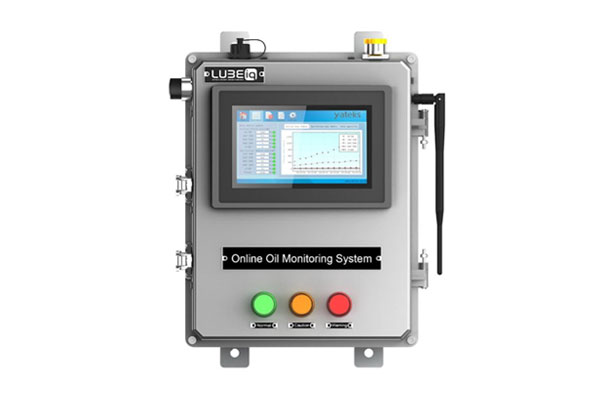

Online Oil Condition Monitoring System LIQ - 8- IIoT System combines multiple sensor functions in one, which can automatically detect the moisture, density, viscosity, dielectric constant, water activity, pollution degree, wear debris particles and temperature. Equipped with software, measurement data can be displayed on the machine’s own screen, your mobile phone, and the cloud.

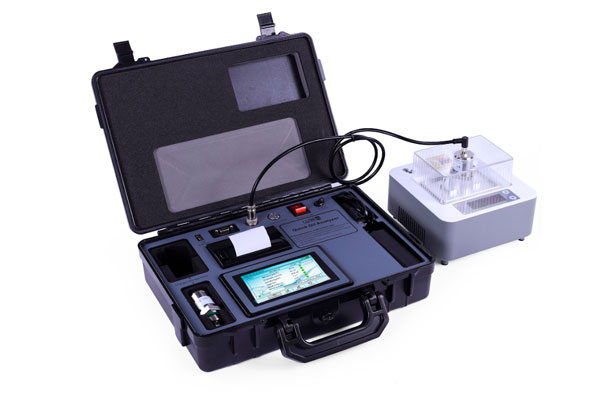

Quick Oil Analyzer LIQ-QOA 15 portable quick oil analyzer LIQ-15 has a 5-inch touch screen display, oil samples can be tested without treatment, no need of any additional consumable accessories, convenient to use, easy to maintain. Rechargeable lithium battery supports 4 hours of operation. Heat devices can make oil samples measured at room temperature, 40°C up to 100 C. For the detection of Viscosity, Density, Dielectric constant, Moisture content(dissolved water), Water Activity(Humidity/Saturation), and Temperature.

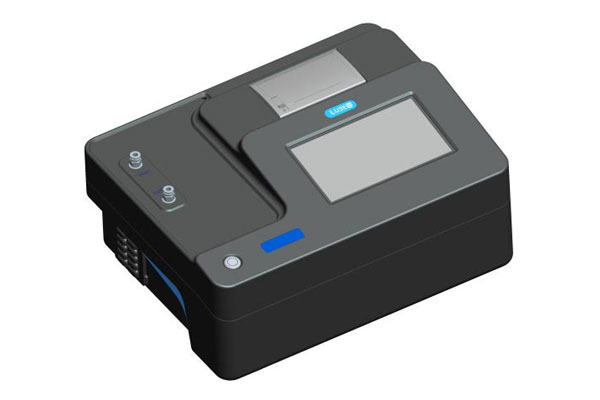

Comprehensive Oil Analyzer. LIQ COA PLUS Quick Comprehensive Oil Analyzer can easily, quickly and stably measure the pollution degree of the lubricating oil, as well as the viscosity, density, temperature, dielectric constant, humidity and moisture content of the lubricating oils. Particle size range of 1-100um (oils viscosity can up to 320cSt), 8 channels. Comply with NAS1638 , ISO4406 and SAE4059 standard

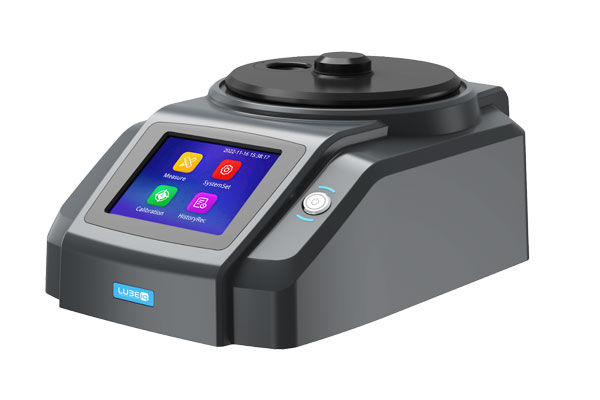

Ferrous Debris Monitor (PQ Index). LIQ FDM PQ Ferrous Debris Monitor is mainly for rapid quantitative analysis of ferromagnetic wear particles in oil, and measures PQ index in oil samples. This instrument is equipped with a 4.5ml special oil sample container and a matching conversion ring. Equipment has a Measuring range of 0-15000PQ., with a Measurement resolution 1PQ (average resolution 0.1PQ).

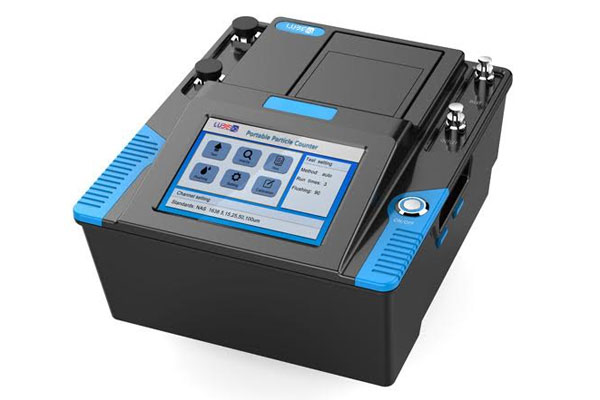

Portable Hydraulic Fluid Particle Counter. HFPC Plus Portable Particle Counter is made in the principle of light extinction(or light-blockage) and used to detect the size and quantity of solid particles in liquid.Comply with NAS 1638, ISO 4406 and SAE749D. Particel size range is 1μm～100μm, 8 channels and free user define particle size. Detection repetition is RSD <2 %.

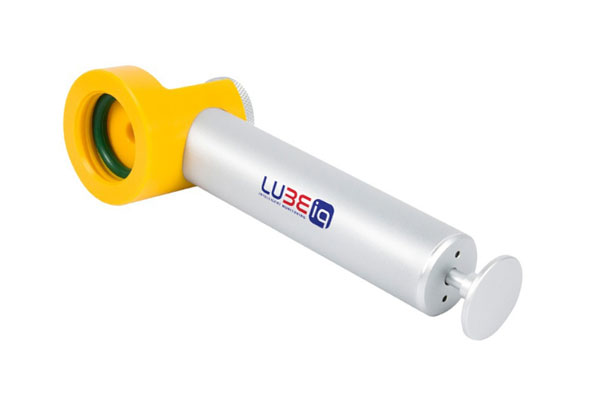

Oil Analysis Sampling Pump LIQ SP is For Accurate Oil Extraction of Various Engine Oil, this Oil Analysis Sampler for standard bottle 38mm neck bottles and tubing size 3/16 – 5/16, also suitable for 5-40, 10-40, and 80-140. It can be widely used for manual oil sampling of hydraulic system, oil cylinder, gearbox, turbine unit, motor, engine, cooler, heater, automobile oil tank, etc.

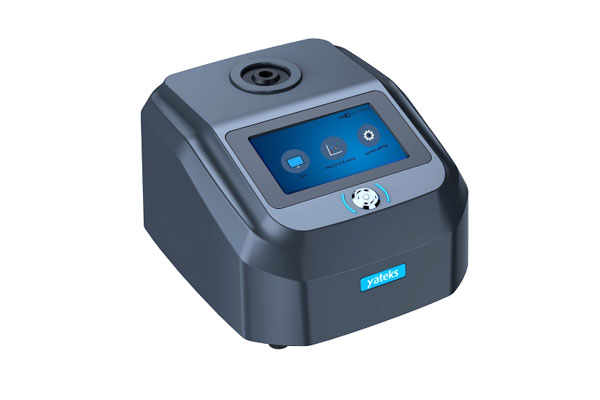

Ferrous Debris Tester. LIQ FDT-2 Portable ferrous debris tester uses electromagnetic induction technology to measure the content of ferromagnetic wear particles in oil. The portable ferrous debris tester is composed of a high-performance ARM processor, ferromagnetic sensor, 5-inch touch screen, USB interface, built-in battery, etc. It only needs to take 2ml oil sample into the oil tube to conduct the measurement.

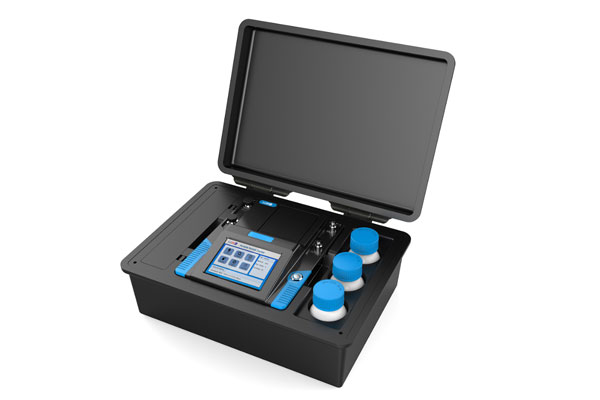

Quick Particle Counter Analyzer. LIQ-QPC 4 Perform On-site quick analysis on particle counting and humidity measurement. Output 8 channels particle counting under ISO4406, NAS1638, ГОСТ17216, SAS4059D, SAE749D. Support manually calibrate on different viscosity oil sample measurement

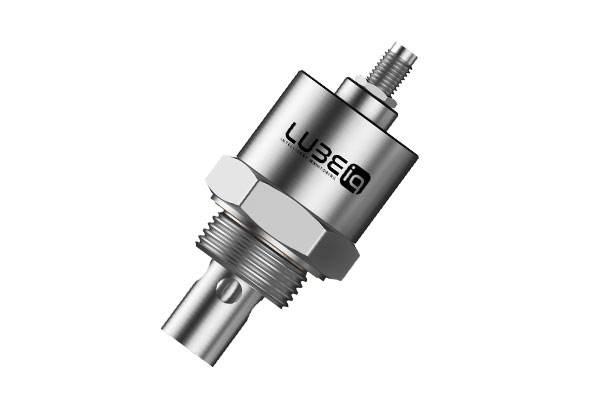

Water Content Sensor LIQ-WCS- W1 Mainly For Measuring On Free Water & Emulsified Water In Oil. Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils. For the detection of Water content, and the Temperature

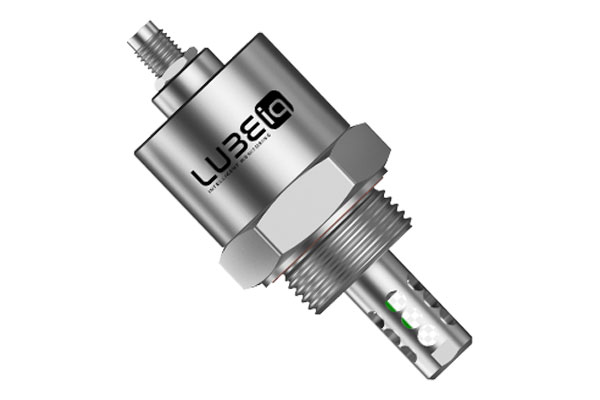

Moisture Content Sensor. Mainly For Measuring On Dissolved Water Content In Oil. LIQ-MCS M-1 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils. For the detection of Water activity(Humidity/Saturation), Moisture content(dissolved water), and Temperature

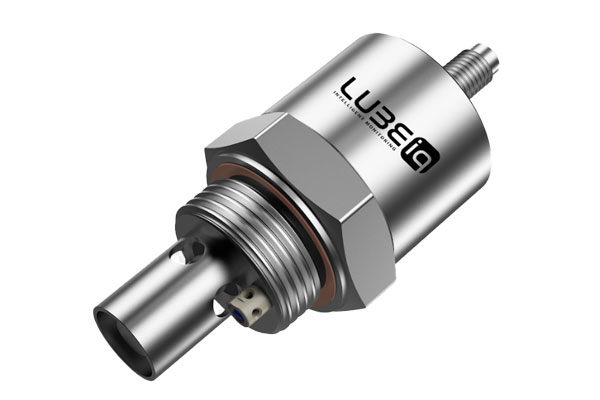

Oil Quality Sensor. LIQ-OQS D-1 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils., For the detection of Oil quality(Dielectric constant), and Temperature

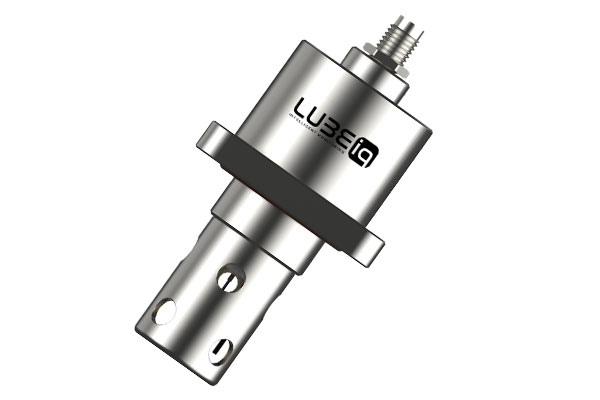

Oil Condition Sensor. LIQ OCS 31 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils, For the detection of Viscosity, Density, and Temperature.

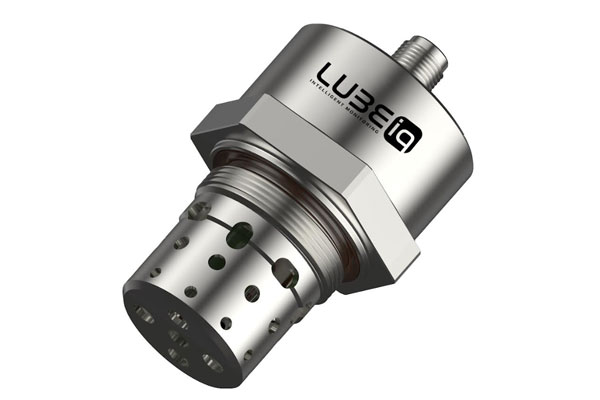

4-IN-1 Oil Condition Sensor. LIQ OCS 41 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils, For the detection of Viscosity, Density, Dielectric constant, and Temperature.

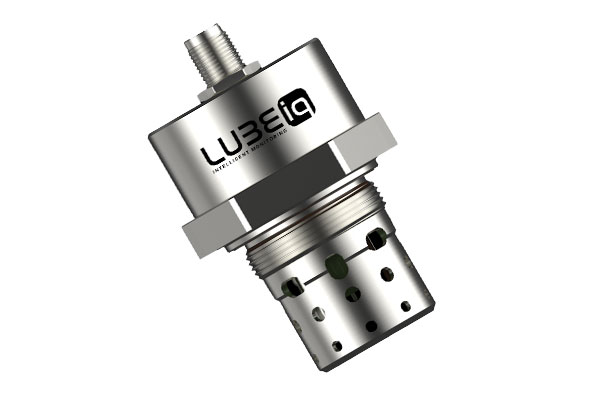

6-IN-1 : Oil Condition Sensor. LIQ OCS 61 Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil and other lubricating oils, For the detection of Viscosity, Density, Dielectric constant, Moisture content(dissolved water), Water Activity(Humidity/Saturation), and Temperature.
